Page events

Page events are a configuration-based way of triggering an action on an event trigger. For example, when a page loads, call an API and retrieve the data from it.

forms-engine-plugin is a frontend service, which should remain as lightweight as possible with business logic being implemented in a backend/BFF API. Using page events, forms-engine-plugin can call your API and use the tailored response downstream, such a page templates to display the response value.

The downstream API response becomes available under the {{ context.data }} view model attribute for view templates, so it can be used when rendering a page. This attribute is directly accessible by our page templates feature and our Nunjucks-based views.

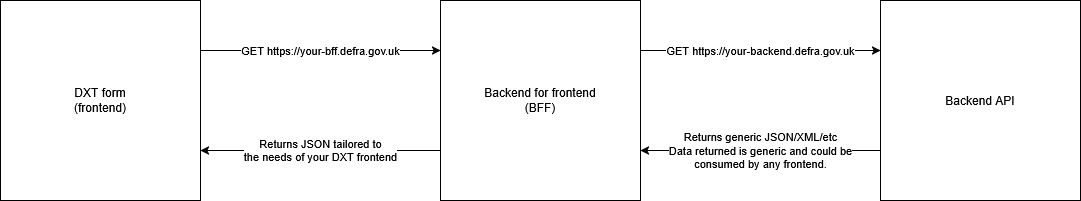

Architecture

forms-engine-plugin will call any API of your choosing, so ultimately the architecture is up to you. As long as that API accepts the forms-engine-plugin payload, returns HTTP 200 and returns a valid JSON document as the response body, you will be able to use page events.

Our recommendation is that you create a lightweight backend service called a "BFF" (backend for frontend). This is a common pattern that allows you to decouple your backend service from the frontend implementation, allowing you to tailor your existing backend API to a different frontend. To learn more about this pattern, see Microsoft's guide.

If forms-engine-plugin is the only consumer of your API, it may make sense to omit the BFF and have forms-engine-plugin directly call your backend.

Setting up a page event

A page event is configured by defining the event trigger, then the action configuration. For example, to call an API on page load:

Copy
{
  "onLoad": {
    "type": "http",
    "options": {
      "url": "https://my-api.defra.gov.uk"
    }
  }
}

See supported events to learn more about the supported triggers and actions.

Supported events

Supported triggers

Currently supported event types:

• onLoad: Called on load of a page (e.g. the initial GET request to load the page)
• onSave: Called on save of a page, after the data has been validated by forms-engine-plugin and the page controller returns a 2xx or 3xx response. Note: if there's any data validation issues requiring a redirect/error, these are handled by the engine before a page controller's involvement and as a result the page event will only trigger when the engine is satisfied and the page controller is.

Supported actions

• http: Makes a HTTP(S) call to a web service. This service must be routable (e.g. by configuring CDP's squid proxy), must accept forms-engine-plugin's standardised payload, return HTTP 200 and a valid JSON document.
  • Options:
    • method: The HTTP method, e.g. POST or GET. Note that forms-engine-plugin posts the form state as a payload, so POST is the correct method if you need to parse the form data.
    • url: A fully formed HTTP(S) URL, e.g. https://my-api.defra.gov.uk or https://my-api.prod.cdp-int.defra.cloud

Payload

forms-engine-plugin sends a standardised payload to each API configured with page events. The latest version of our payload can be found in our outputFormatters module by opening the latest version, e.g. v2.ts. Our payload contains some metadata about the payload, along with a "data" section that contains the main body of the form as a JSON object, an array of repeatable pages, and a file ID and download link for all files submitted.

As of 2025-03-25, the payload would look something like this:

Copy
{
  "meta": {
    "schemaVersion": "2",
    "timestamp": "2025-03-25T10:00:00Z",
    "definition": {
      // This object would be a full copy of the form definition at the time of submission. It is excluded for brevity.
    }
  },
  "data": {
    "main": {
      "componentName": "componentValue",
      "richComponentName": { "foo": "bar", "baz": true }
    },
    "repeaters": {
      "repeaterName": [
        {
          "textComponentName": "componentValue"
        },
        {
          "richComponentName": { "foo": "bar", "baz": true }
        }
      ]
    },
    "files": {
      "fileComponentName": [
        {
          "fileId": "123-456-789",
          "link": "https://forms-designer/file-download/123-456-789"
        }
      ]
    }
  }
}

Using the response from your API in forms-engine-plugin

If the API call is successful, the JSON response your API returns will be attached to the page context under the data attribute. Liquid/Nunjucks can then use this data however it would normally use variables, for example:

Your API response:

Copy
{
  "awardedGrantValue": "150"
}

Page template:

Copy
{% if context.data.awardedGrantValue %}
  <p class="govuk-body">Congratulations. You are likely to receive up to £{{ context.data.awardedGrantValue }}.</p>
{% else %}
  <p class="govuk-body">You have not been awarded any funding for this application.</p>
{% endif %}

Results in:

Copy
<p class="govuk-body">You have been awarded £150.</p>

Authenticating a HTTP page event request from forms-engine-plugin in your API

The preparePageEventRequestOptions plugin option allows you to prepare the request options during a page event http request. This is useful to apply auth headers to the request.

Copy
await server.register({
  plugin,
  options: {
    preparePageEventRequestOptions:  (options: RequestOptions, event: Event, page: PageControllerClass, context: FormContext) => {
      // Request `options` are passed with the expectation they'll be manipulated
      // The current `event`, `page` and `context` are passed for reference
      options.headers = {
        authorization: 'my token'
      }
    }
  }
})
